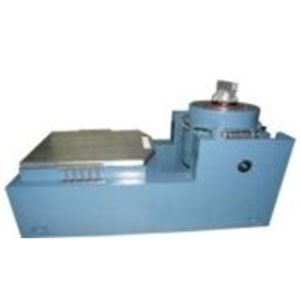

Sophisticated Vibration Test Systems , Programmable Vibration Simulation Systems
Test principle:
The movement of the current-carrying conductor in the magnetic field is caused by the action of the electromagnetic force. When the moving coil in the magnetic circuit of the electromagnetic vibrating table passes through the alternating current signal, an exciting force is generated to generate vibration in the magnetic circuit.
Vibration table construction:
Digital vibration controller:
(1) Introduction to digital vibration controller:
The vibration controller is of advanced distribution structure system, and closed-loop control is achieved by DSP processor. PC is independent of control loop to ensure real-time and high efficiency of the control system so as to timely and rapidly respond to any changes of the test system, and ensure control stability and high precision.
32-bit floating-point DSP processor with primary frequency up to 300MHz and 24-bit resolution ADC/DAC are used for hardware in coordination with high precision floating-point digital filtering and low noise design technology of hardware circuit. The dynamic random control range of the controller is more than 90dB and the signal to noise ratio is more than 100dB.
(2) Features of vibration controller:
(3) Digital vibration controller function description:
1 Random control
2 Sine control
3 Classic Shock Control
4 Resonance Search and Dwell (Sinusoidal Resonance Search)
5 Random plus random
6 Sine plus random
The main technical parameters:
(1) VG1000-50 electromagnetic vibration generator:
| Item | Specification |
| Max. sine exciting force | 4000Kg.f peak |
| Max. random exciting force | 4000Kg.f rms |
| Max. shock exciting force | 8000Kg.f peak |
| Frequency range | 1～3000 Hz |
| Max. displacement | 51mm p-p |
| Max. velocity | 2m/s |
| Max. acceleration | 100G(980 m/s2) |
| Max. load (sine) F=M.A | 5G (49 m/s2): 190kg; 10G (98 m/s2): 90kg; 20G (196 m/s2): 40kg; 30G (294 m/s2):23kg |
| First-order resonance frequency | 2600 Hz±5% |
| M1+M2Effective load | 300 kg |
| Vibration isolation frequency | 2.5 Hz |
| Diameter of armature | Ф340 mm |
| Mass of armature | 35kg |
| Flux leakage | ＜10gauss |
| Allowable eccentric moment | ＞500N.m |
| Shaker dimensions | 1270mm×1000mm×1150mm(not including vertical expansion table) |
| Equipment weight | 1920 kg |
(2) LA40K digital switch power amplifier:
| Item | Data |
| Output power | 40KVA |
| Output voltage | 110Vrms |
| Output current | 42Arms |
| Signal to noise ratio | ≥65dB |
| Amplifier efficiency | > 90% |
| Amplifier dimension | 600mm×900mm×2040mm |
(3) VT60 vertical extension table:
| Item | Data |
| Material | Aluminum alloy with surface hard anodized |
| Dimension | 600×600mm |
| Fixing hole | M10 durable and wear-resistant stainless steel screw sleeve |
| Frequency limit | 2000Hz |
| Weight | About 33Kg |
(4) H60 horizontal slip table:
| Item | Data |
| Material | Aluminum alloy with surface hard anodized |
| Dimension | 600×600mm |
| Fixing hole | M10 durable and wear-resistant stainless steel screw sleeve |
| Frequency limit | 2000Hz |
| Weight | About 62Kg |
(5) B153S cooling blower (including silencer):
| Item | Parameter |
| Blower power | 15KW |
| Flow rate | 1.2m3/s |
| Fan pressure | 6.5kpa |
Remark:
1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.
2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.
3 Our company has other types of testing machines that can be supplied, and users are welcome to consult.
